Born from the idea of Mr. Fabio Mazzali, the company is european leader in production of filtering systems and fittings for irrigation plants, under and overground, from more then 30 years.

Growing up as an installer / plant engineer famous in Italy for over 20 years, since 1985 he started a new experience as producer to meet the growing request of special parts, becoming one of the most important reality on the national soil.

Mazzali srl with the help of his qualified entourage, give right solutions to every request of the customer, following and developing the project in all aspects. All the items, filtering systems and special parts, are realized inside the company, that means optimized quality / price index. The high flexibility of the production layout allows the company to face all the customer's requests without any minimum supplying quantity.

Do not hesitate to contact us for every request.

CONSTRUCTION FEATURES

The filter Art. 101 is built entirely in hot galvanized steel. The filtering section is made by a stainless steel 304 support basket with a polyester net (from 50 to 200 mesh), or by a stainless steel basket with a stainless steel net inside (from 50 to 120 mesh).


FUNCTIONING

The filter Art. 101 is built following the principle of "free movement", It means that water, flowing inside the steel cylinder, brings for inertia the dirt particles to the bottom of the filter, avoiding the clogging of the polyester net. The expulsion of unwanted particles takes place, in good part, through the opening of the dumping valve at the base of the filter.

Ø	Lt/s	A	B	C	D	E	F	G	H	I	kg.	X
1''1/2	3	500	480	48	410	48	430	540	114	175	6,8	100
2''	5	520	500	60	450	60	430	600	152	215	14	70
080	10	660	660	89	550	89	470	720	219	290	25	70
100	20	780	730	114	620	114	570	850	219	290	29	120
125	30	900	890	133	820	133	770	1070	219	290	36	210
150	50	1100	1020	152	1100	152	770	1115	219	290	38	-
200	80	1240	1300	219	1150	219	950	1440	380	420	105	-
250	110	1550	1400	273	1000	273	1150	1600	406	450	200	-
300	140	1600	1500	323	1400	323	1150	1750	500	650	250	-

CONSTRUCTION FEATURES

The filter art. 102 is the only one example of disc filter entirely made in hot galvanized steel, avoiding problems caused by the most common epoxy coating. On this filtering system is implemented the new fixing technique          of the reed valve which makes the filter suitable for all types of irrigation.

Ø	Lt/s	A	B	C	D	E	F	G	H	kg.
2''	5	540	440	340	220	290	140	2''	100	-
080	10	740	640	540	220	290	140	080 / 3''	110	-
100	20	960	830	740	220	290	150	100 / 4''	120	-

CONSTRUCTION FEATURES

The filter Art. 103 is built entirely in hot galvanized steel, a part of the sorter section that is made in plastic material. All the diffusers has micropores of 0,4 mm.


FUNCTIONING

The sand filter is capable of retaining a greater amount of organic substances than Art. 104. The filtering system is composed of diffusers with special windows of 0,4 mm. The Quartzite (sand) used is a very fine quartz cross-section, 1-2 mm. Expulsion of impurities takes place with the help of a backwashing system (supplied on request), that reverse the flow. Usually filters are coupled, in this way each filter is washed by the clean water filtered from the other one.

Ø	Lt/s	A	B	C	D	E	F	kg.	Quarzite
1''1/2	5	400	290	48	650	1050	700	65	Kg. 75
2''	7	500	290	60	1000	1650	800	90	Kg. 225
080	12	600	290	80	1000	1700	900	120	Kg. 310
100	25	850	290	100	1000	1900	1150	190	Kg. 650

CONSTRUCTION FEATURES

The filter Art. 103 T.O. is built entirely in hot galvanized steel, a part of the sorter section that is made in plastic material. All the diffusers has micropores of 0,4 mm.


FUNCTIONING

The sand filter is capable of retaining a greater amount of organic substances than Art. 104. The filtering system is composed of diffusers with special windows of 0,4 mm. The Quartzite (sand) used is a very fine quartz cross-section, 1-2 mm. Expulsion of impurities takes place with the help of a backwashing system (supplied on request), that reverse the flow. The double chamber system allows the backwashing with cleaned water without using intercepting filter.

Tipo	Lt/s	A	B	C	D	E	F	G	H	N. Diffusori	Quarzite
T.O. 600	15	1000	1500	600	900	080	1''1/2	3''	280	34	Kg. 400
T.O. 850	30	1200	1850	850	1100	100	2''	4''	360	64	Kg. 700

CONSTRUCTION FEATURES

The filter Art. 104 is built entirely in hot galvanized steel, is composed by a cylinder whose base is positioned a grid with holes of 5/6 mm with the purpose of supporting the grit filtering bed.


FUNCTIONING

The simple configuration of the grit model is perfectly suitable for filtering water from ponds or streams. The flow of water enters from the top and pass through the grit which will keep most of the unwanted substances tanks to the micro passages created by the positioning of the grit itself. Elimination of impurities is via a backwash system, supplied on request, which reverse the flow of water. Usually are coupled, in this way you can run the backwashing of the first filter with the clean water coming from the second and vice versa.

Ø	Lt/s	A	B	C	D	E	F	kg.	Quarzite
1''1/2	3	400	295	48	1180	48	600	60	Kg. 70
2''	5	400	295	60	1180	60	600	60	Kg. 70
3''	10	500	295	89	1080	60	700	63,3	Kg. 110
080	10	500	295	205	1080	60	700	67	Kg. 110
4''	20	500	295	114	1400	60	700	70,5	Kg. 150
100	20	500	295	220	1400	60	700	75,5	Kg. 150
5''	25	600	295	133	1400	60	700	73	Kg. 150
125	25	600	295	250	1400	60	700	78	Kg. 150
5''	30	600	295	133	1400	60	800	82	Kg. 190
125	30	600	295	250	1400	60	800	88	Kg. 190
150	50	850	295	280	1800	60	1150	190	Kg. 520

CONSTRUCTION FEATURES

The filter Art. 108 is a generic solid separator filter built entirely in hot galvanized steel. Basically his structure is subdivided in two parts : input section and collection chamber. The input section has to impose a circular flow to the water that allow the action of the centrifugal force, while the collection chamber has the task of containing the impurities detached from the flow.


FUNCTIONING

Its operation is subject to the law of "Stokes". The water forced to enter tangentially into the filter is accelerated and the centrifugal force push particles towards the external walls keeping clean water in the middle. The discharge of accumulated solids in the collection chamber takes place through a valve located at the base of the filter.

Ø	Lt/s	A	B	C	D	E	F	G	H	I	kg.
3/4''	1,2	180	125	25	3/4''	25	89	380	50	100	4
1''	2	230	180	33	1''	33	114	630	90	180	9
1''1/2	3	300	220	48	42	48	133	650	90	220	9,8
2''	5	365	300	60	52	60	192	920	190	300	19,5
080	10	440	350	203	80	203	192	995	190	320	28
100	20	450	400	220	100	220	250	1115	190	350	35
125	30	485	400	250	125	250	250	1121	190	350	41
150	45	620	500	280	152	280	300	1350	200	400	55
200	60	750	600	320	211	320	400	2225	220	550	110

CONSTRUCTION FEATURES

The filter Art. 109 is a generic solid separator filter built entirely in hot galvanized steel. his base structure is made with a cylindric section and two dished (minimum thickness 3 mm). Inside of it we find a cone that creates a double chamber system. This system solves the common problems that conic hydrocyclones have, most of them, used for shorts periods, have a cutting problem at the base of the cone, caused by the high speed of the water - send mixture.


FUNCTIONING

The Cs/92 filters, are hydrocyclones with double chamber system, and their operation is given by the speed of the water flow, that entering tangentially creates vorticity that push particles towards external wall. The lamellar structure of the cone permits the immediate expulsion from the water flow of the main part of the unwanted particles, in this way clean water can pass through the cleaned vortex, and not a dirt vortex like in the common hydrocyclones, this improves the percentage of filtration until 99%. The discharge of accumulated solids in the collection chamber takes place through a valve located at the base of the filter.

Ø	Lt/s	A	B	C	D	E	F	kg.
1''	2	500	175	170	33	33	400	11,5
1''1/2	3	700	320	220	48	48	580	17
2''	5	800	320	220	60	60	680	20
080	10	1160	410	320	200	89	970	42
100	20	1400	500	400	220	114	1110	60
125	30	1500	500	400	250	133	1210	66
150	45	1500	500	400	280	159	1210	70

CONSTRUCTION FEATURES

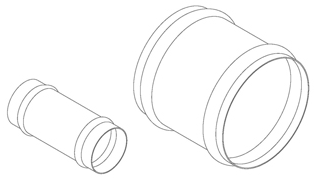

The couplings are made internally from calendering to the edge calibrated, high precision allows a perfect coupling with the PVC pipes. Couplings are stocked with hundreds of pieces available for immediate delivery in all configurations: rough steel, galvanized or stainless 304.

All the couplings and items that are made with them are accompanied by pressure seal for all diameters.

Ø	500 sp. 4	700 sp. 4	500 sp. 5	700 sp. 5
075	x	-	-	-
090	x	-	-	-
110	x	-	-	-
125	x	x	-	-
140	x	x	-	-
160	x	x	-	-
180	x	x	-	-
200	x	x	-	-
225	x	x	-	-
250	x	x	-	-
280	x	x	-	-
315	x	x	-	-
355	x	x	-	-
400	x	x	x	x
450	x	x	x	x
500	x	x	x	x
630	x	x	x	x
